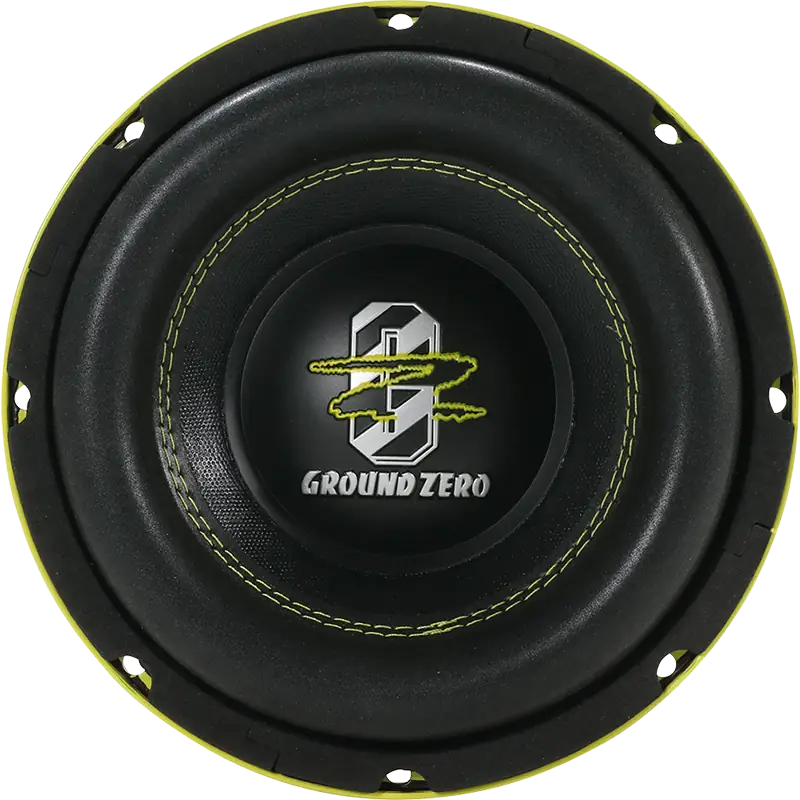

GZHW 20XSPL-D2
20 cm / 8″ high quality SPL subwoofer
1500 Watts SPL
8″ high quality SPL subwoofer with alumiunum cast basket and reinforced paper cone- 8″ high quality SPL subwoofer
- Klippel® optimized
- Reinforced paper cone
- Long stroke compound surround
- Solid aluminum cast basket
- 63 mm / 2.5″ copper voice coil
- 2-layer Polycot spider
- IMPP dust cap with 3D structure logo
Model | High-Quality SPL subwoofer |
---|---|
Diameter | 20 cm / 8″ |
Power handling (RMS/SPL) | 700 / 1500 Watts |
Impedance | 2x 2 Ohms |
Efficiency | 80 dB |
Power recommendation | 50 – 1500 Watts |
Voice coil | 63 mm / 2.5″ Copper |
Cone | Reinforced paper |
Max. Excursion (Xmax) | 40 mm / 1.57″ |
Mounting Ø | 187 mm / 7.36″ |
Mounting depth | 145 mm / 5.71″ |
Resonance frequency (Fs) | 38.3 Hz |
Overall quality (Qts) | 0.381 |
Equiv. air volume (Vas) | 4.77 L / 0.17 cu.ft. |
