GZHW 38XSPL-D2

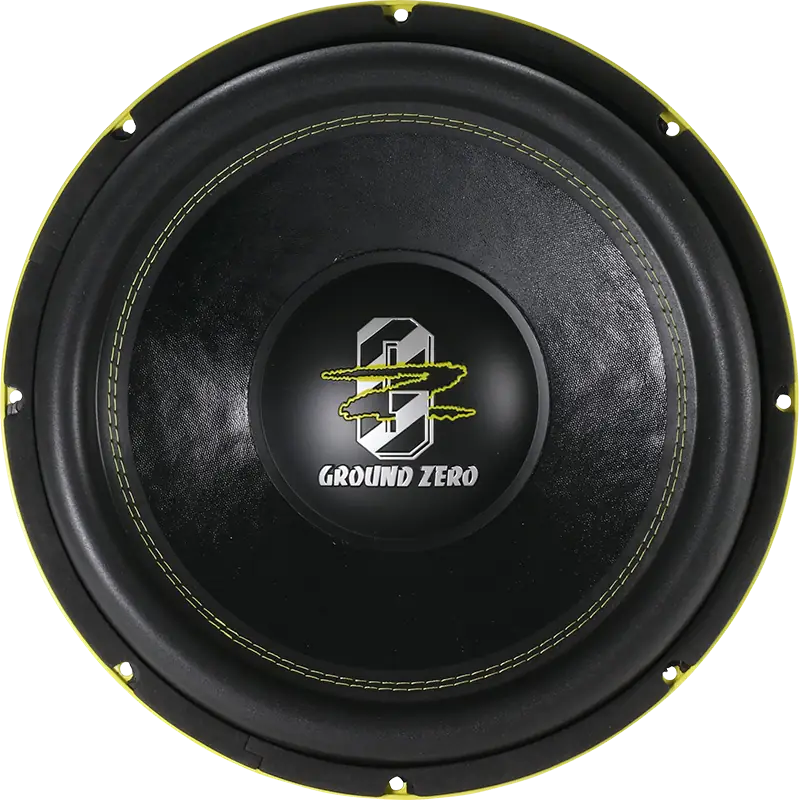

38 cm / 15″ high quality SPL subwoofer
3500 Watts SPL
15″ high quality SPL subwoofer with alumiunum cast basket and reinforced paper cone- 15″ high quality SPL subwoofer
- Klippel® optimized
- Reinforced paper cone
- Long stroke compound surround
- Solid aluminum cast basket
- 75 mm / 3″ copper voice coil
- 2-layer Polycot spider
- IMPP dust cap with 3D structure logo
Model | High-Quality SPL subwoofer |
---|---|
Power handling (RMS/SPL) | 1500 / 3500 Watts |
Impedance | 2x 2 Ohms |
Efficiency | 87 dB |
Power recommendation | 1500 – 3500 Watts |
Voice coil | 75 mm / 3″ Copper |
Cone | Reinforced paper |
Max. Excursion (Xmax) | 45 mm / 1.77″ |
Mounting Ø | 360 mm / 14.17″ |
Resonance frequency (Fs) | 36.3 Hz |
Overall quality (Qts) | 0.52 |
Equiv. air volume (Vas) | 32.8 L / 1.16 cu.ft. |
