GZIF 6.5
165 mm / 6.5″ 2-way coaxial speaker system
120 Watts max
6.5″ 2-way coaxial speaker system with lightweight HQPP cone
- 2-way coaxial speaker system
- HQPP cone with 3D structure
- Rubber surround
- Euro-DIN basket
- Resonance free steel basket
- Universal 4 ohms version
- 13 mm / 0.51″ Mylar tweeter
- Ferrite motor
- 6 dB/oct high pass filter

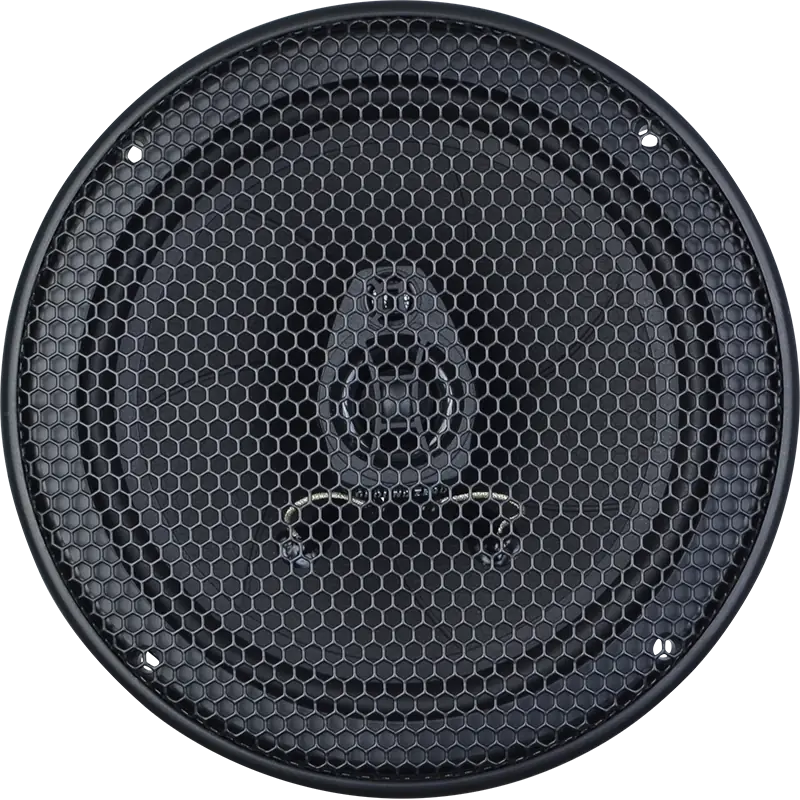

- Incl. Hexagon style protection grill
| Model | 2-way coaxial speakers |
|---|---|
| Diameter | 165 mm / 6.50″ |
| Power handling (RMS/max.) | 80 / 120 Watts |
| Impedance | 4 Ohms |
| Efficiency | 91 dB |
| Frequency Response | 50 Hz – 20 kHz |
| Tweeter | 13 mm / 0.51″ Mylar tweeter |
| Membran | HQPP cone with 3D-structure |
| Mounting Ø | 142.5 mm / 5.61″ |
| Mounting depth | 63 mm / 2.48″ |
