GZ Reference K-165
165 mm / 6.5” pure high-end SQ midwoofer
165 mm / 6.5” pure high-end SQ midwoofer
180 Watts max

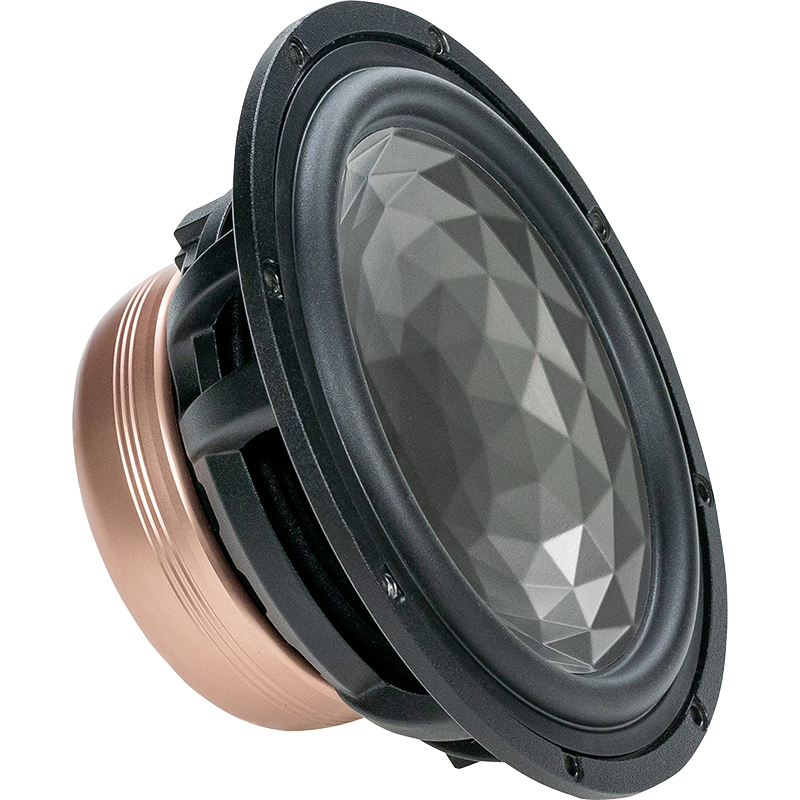

6.5″ pure high end midwoofer with GZ-design aluminum cast basket offering unique ventilation
- 6.5″ pure high end midwoofer
- 37 mm / 1.45″ voice coil

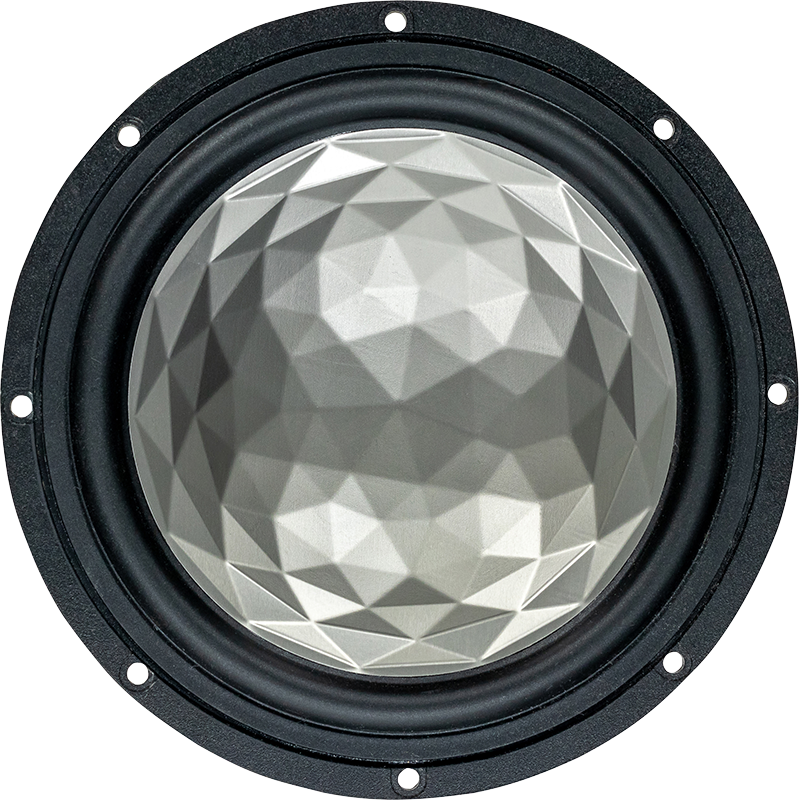

- High-Tech diamond structured cone with high damping support cone
- High-efficient hybrid motor with neodymium and ferrite magnets
- Aluminum ring for impedance linearizing
- GZ-design hexagon style NRG* protection grill with logo option
- Gold-plated GZ-design screw terminal
- Copper coloured Aluminum magnet cover
- Optimized using the renowned Klippel® measurement system
- 1 pair / package
| Model | High end midrange speaker |
|---|---|
| Diameter | 80 mm / 3.15″ |
| Power handling (RMS/max.) | 80 / 120 Watts |
| Impedance | 4 Ohms |
| Efficiency | 85 dB |
| Frequency Response | 150 Hz – 6000 Hz |
| Voice coil | 19 mm / 0.75″ |
| Cone | Double pressed paper |
| Mounting depth | 45 mm |
| Resonance frequency (Fs) | 107.5 Hz |
