GZ Reference M-80
80 mm / 3.15″ pure high end midrange speaker
80 mm / 3.15″ pure high end midrange speaker
110 Watts max
3.15″ pure high end midrange speaker with ceramic coated aluminum cone
- 80 mm / 3.15″ high end midrange speaker with supreme sound quality
- Klippel® optimized

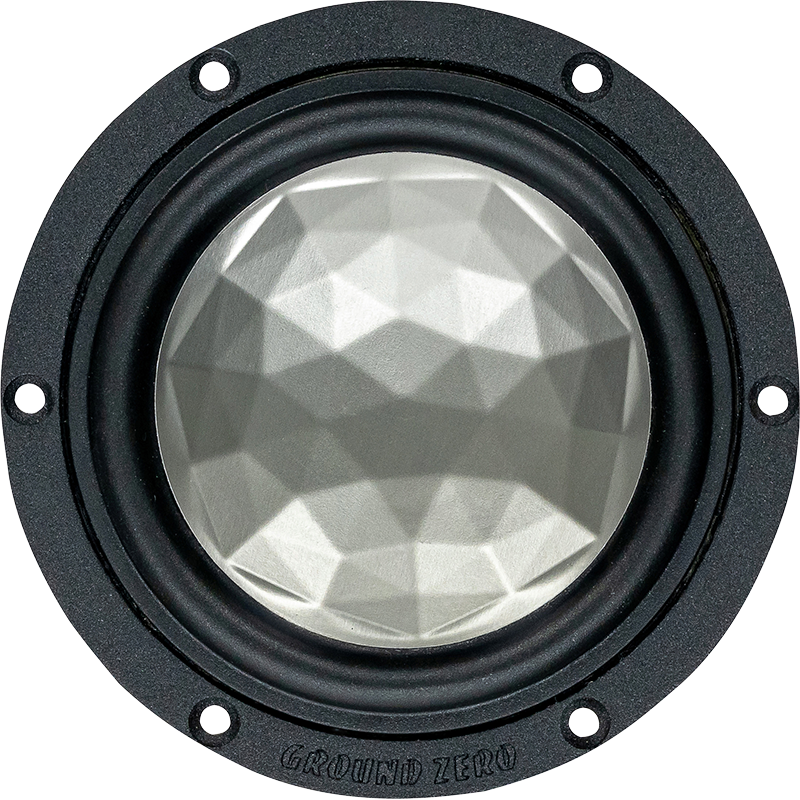

- High-Tech diamond structured cone with high damping support cone
- High-efficient, linearized neodymium motor
- Aluminum ring for impedance linearizing
- GZ-design aluminum cast basket
- GZ-design hexagon style NRG protection grill
- Goldplated soldering terminal
- 1 pair / package
| Model | High end midrange speaker |
|---|---|
| Diameter | 80 mm / 3.15″ |
| Power handling (RMS/max.) | 80 / 120 Watts |
| Impedance | 4 Ohms |
| Efficiency | 85 dB |
| Frequency Response | 150 Hz – 6000 Hz |
| Voice coil | 19 mm / 0.75″ |
| Cone | Double pressed paper |
| Mounting depth | 45 mm |
| Resonance frequency (Fs) | 107.5 Hz |
