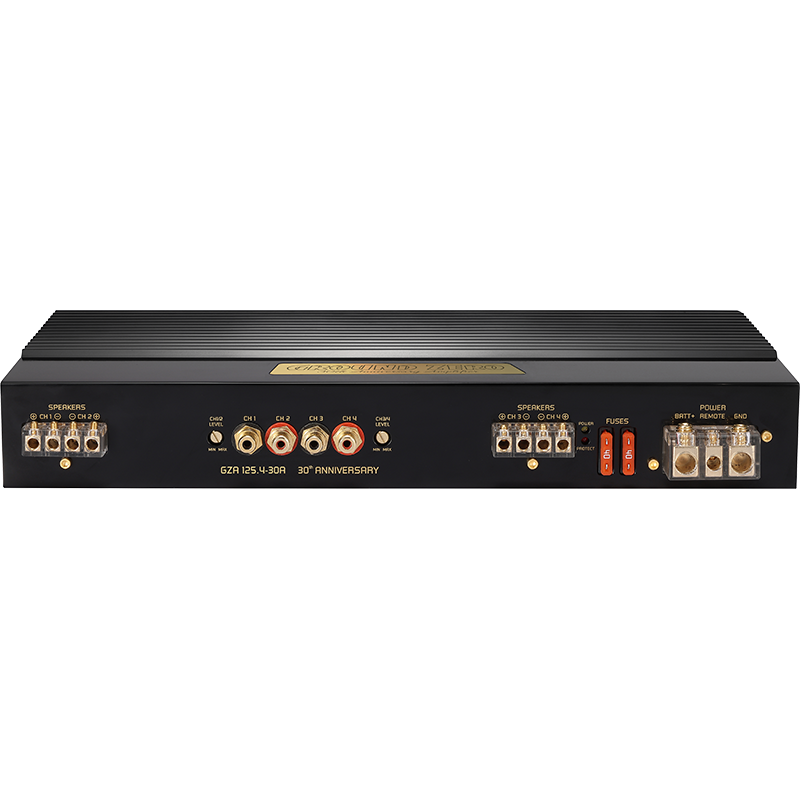

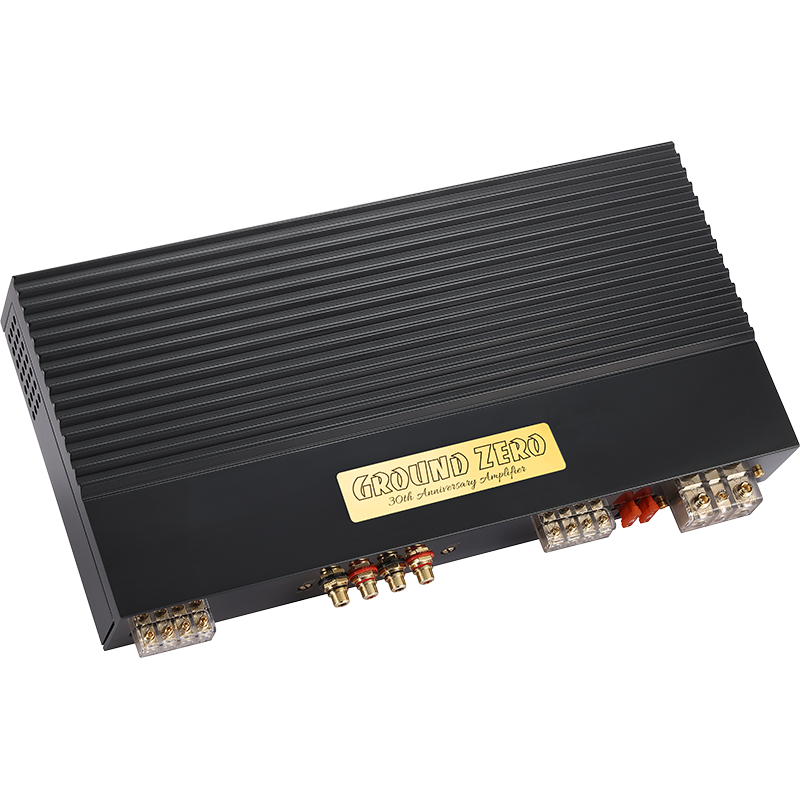

GZA 125.4-30A
High-performance 4-channel SQ amplifier
High-performance SQ amplifier
4-channel sound quality amplifier with class A/B circuit and BIAS adjustmenq
- 4-channel SQ amplifier
- Variable BIAS setting
- Filterless signal paths
- High-Performance OPA 2134 operational amplifier
- MUNDORF® audio capacitors
- Soft delayed remote turn-on
- Gold-plated connectors
- Massiv heatsink in piano lacquer look
- Suitable for high quality SQ setups
| Model | Sound quality amplifier |
|---|---|
| Channels | 4 |
| Output Power (@ 4Ω) | 4x 125 Watts RMS |
| Output Power (@ 2Ω) | 4x 215 Watts RMS |
| max. Output Power bridged (CEA-2006A / 10%THD+N) | 2x 480 Watts |
| Frequency Response | 5 Hz – 70 kHz |
| HPF / LPF / BPF | ○ / ○ / ○ |
| Bass Boost / Phase Shift | ○ / ○ |
| High-Level Input / Auto-on | ○ / ○ |
| Remote Control | ○ |
| BIAS Setting | ● |
| Linkmode | ○ |
| Dimensions (w x l x h) | 195 x 360 x 53 mm / 7.70“ x 14.17″“ x 2.10“ |
