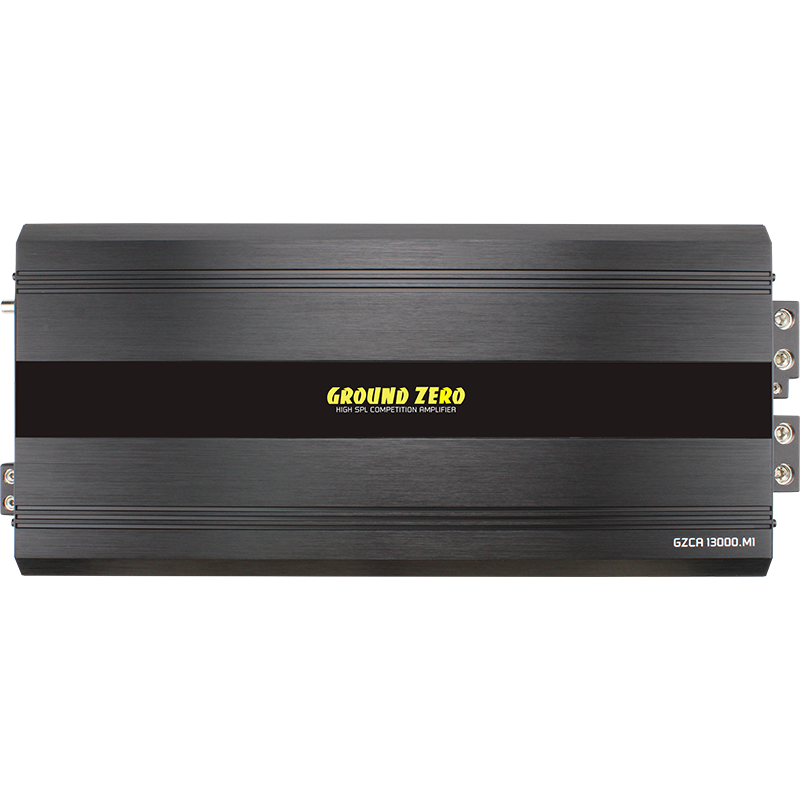

GZCA 13000.M1
Mono competition SPL amplifier
Mono competition SPL amplifier
High-power mono class D amplifier
1-channel 1-ohm stable SPL high power amplifier with class D circuit, integrated active crossover and bass boost
- SPL high power amplifier
- High-efficient class D technology
- Variable active crossover and bass boost
- Particularly qualified for SPL and SQL applications
- Stabilized high voltage power supply

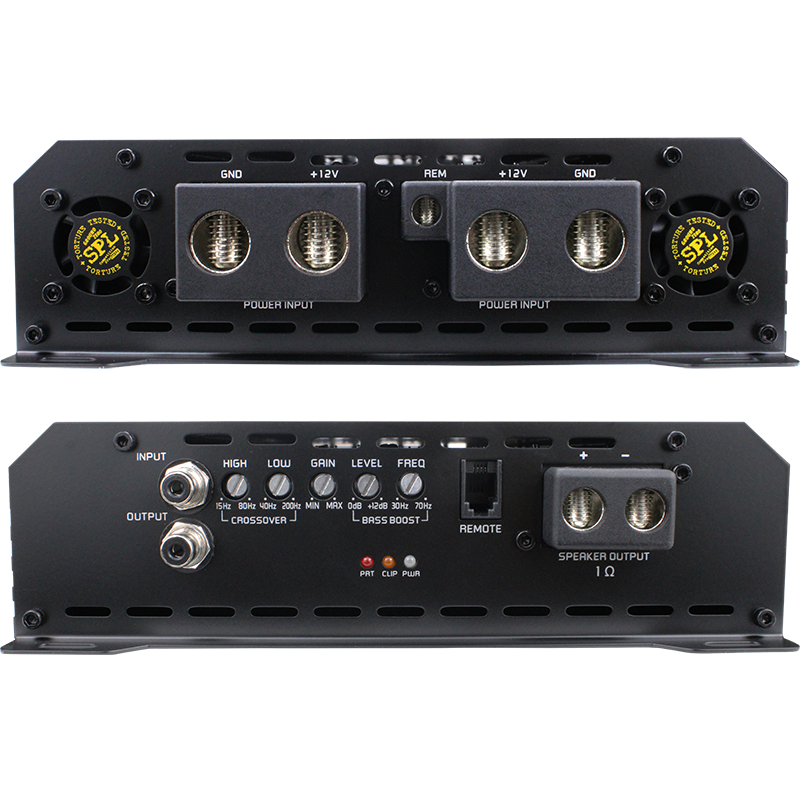

- Large terminals
- Flat heatsink design in classic GZ style
- Wired bass level remote control included
| Model | Competition SPL amplifier |
|---|---|
| Channels | 1 |
| Output Power (@ 4Ω) | 3200 Watts RMS |
| Output Power (@ 2Ω) | 6400 Watts RMS |
| Output Power (@ 1Ω) | 12560 Watts RMS / 14800 Watts max |
| Frequency Response | 15 Hz – 200 Hz |
| HPF / LPF / BPF | ● / ● / ● |
| Bass Boost / Phase switch | ● / ○ |
| High level input / Auto-on | ○ / ○ |
| Remote | ● |
| BIAS Setting | ○ |
| Linkmode | ○ |
| Dimensions (W x L x H) | 200 x 455 x 57 mm / 7.87″ x 17.91″ x 2.24″ |
