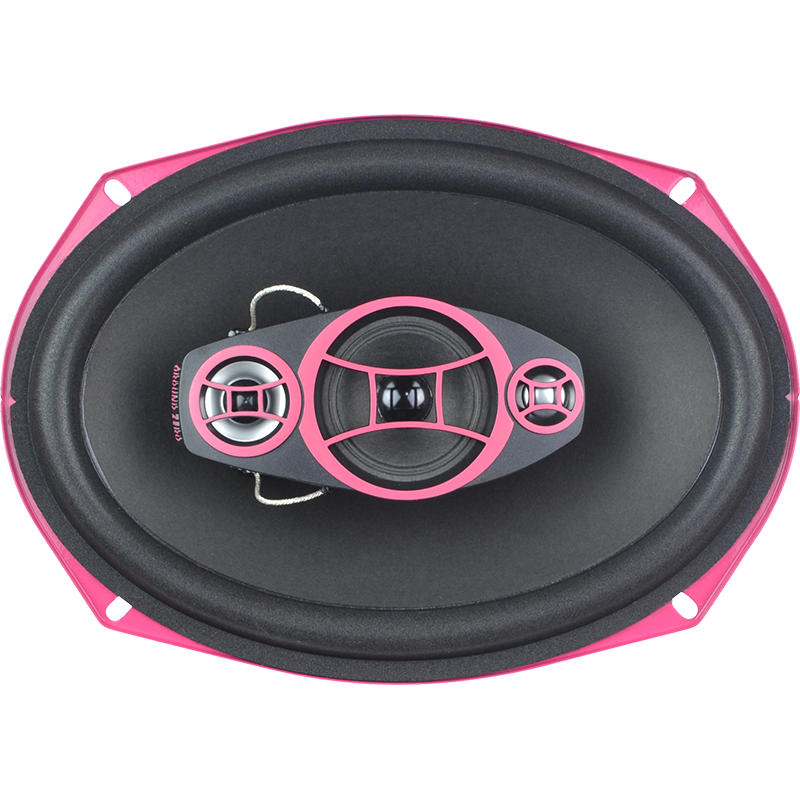

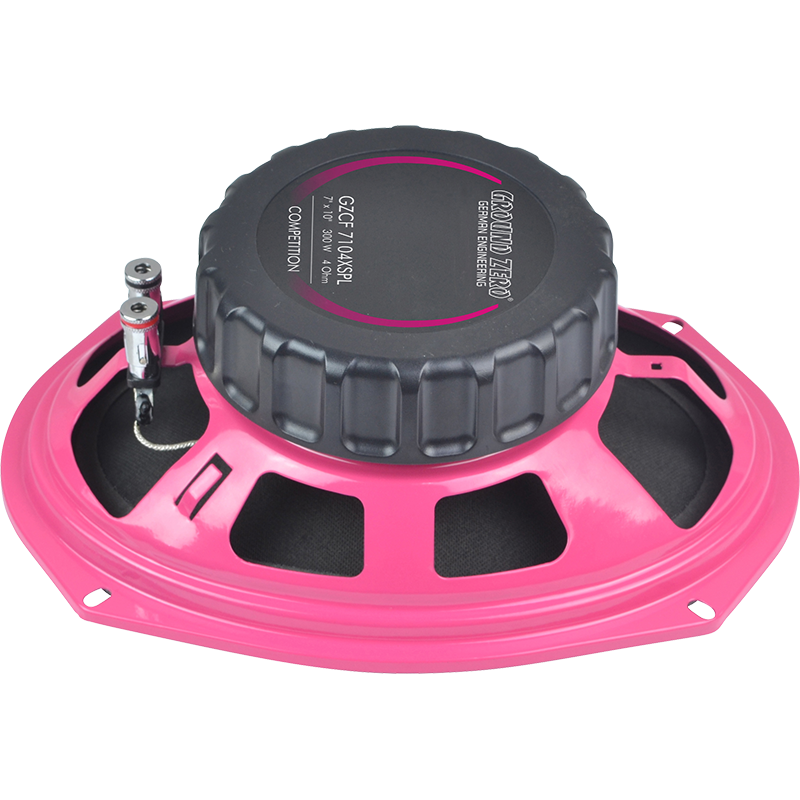

GZCF 7104XSPL PINK EDITION
7×10″ 4-way coaxial speaker system
– Available in selected countries –
300 Watts max
7×10″ 4-way high power coaxial speaker system with fiber reinforced paper cone and an impedance of 4 ohms
- 4-way coaxial speaker system
- Fiber reinforced paper con
- Foam surround
- Push terminal
- Resonance free steel basket
- Universal 4 ohms version
- 13 mm / 0.51″ PEI tweeter
- 50 mm / 2″ paper cone midrange speaker
- 13 mm / 0.51″ Piezo super tweeter

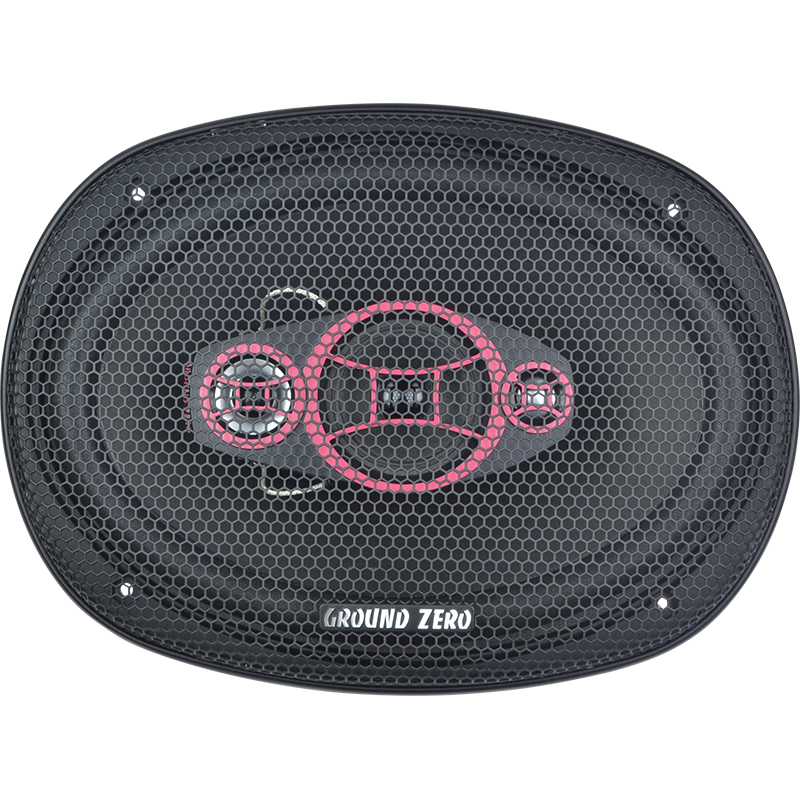

- Incl. protection grill
| Model | 4-way coaxial speakers |
|---|---|
| Diameter | 7×10″ |
| Power handling (RMS/max.) | 200 / 300 Watts |
| Impedance | 4 Ohms |
| Efficiency | 93 dB |
| Frequency Response | 35 Hz – 25 kHz |
| Tweeter | 13 mm / 0.51″ PEI tweeter |
| Midrange Speaker | 50 mm / 2″ paper dipole |
| Super Tweeter | 13 mm / 0.51″ Piezo |
| Mounting Ø | 165 x 239 mm / 6.50″ x 9.41″ |
| Mounting depth | 86 mm / 3.39″ |
