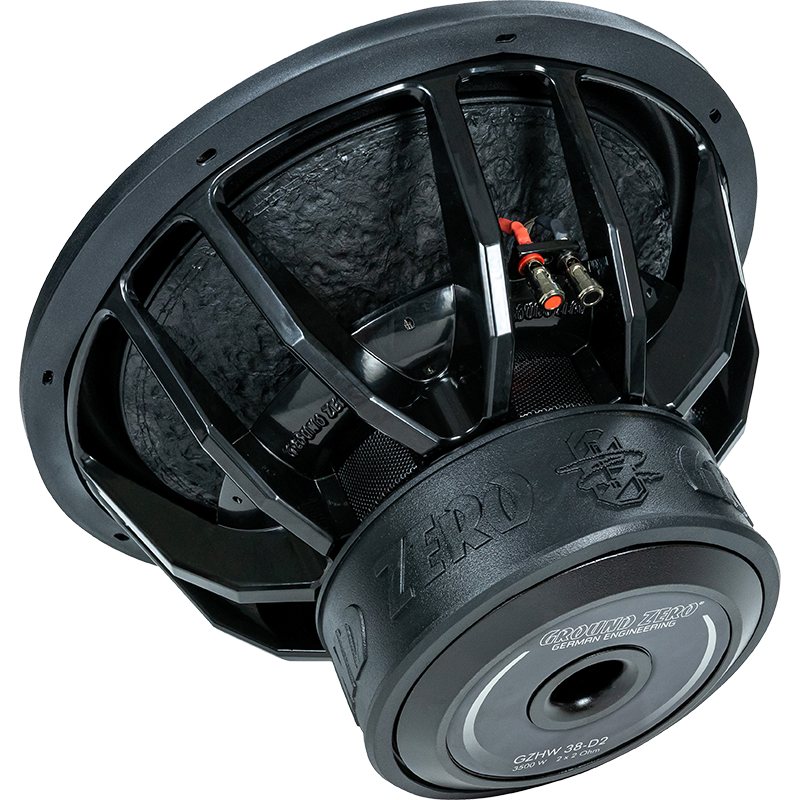

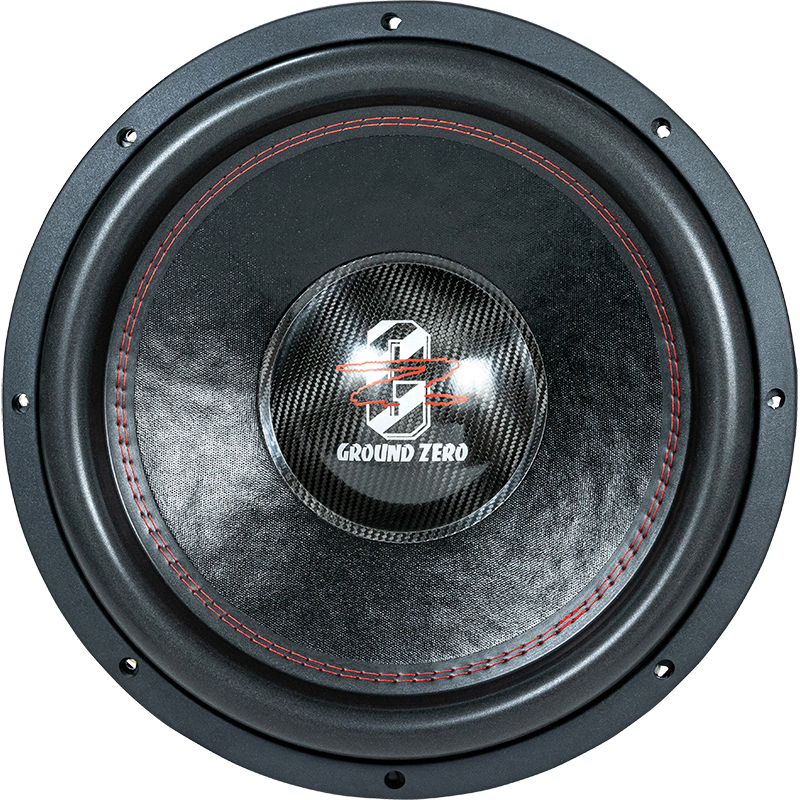

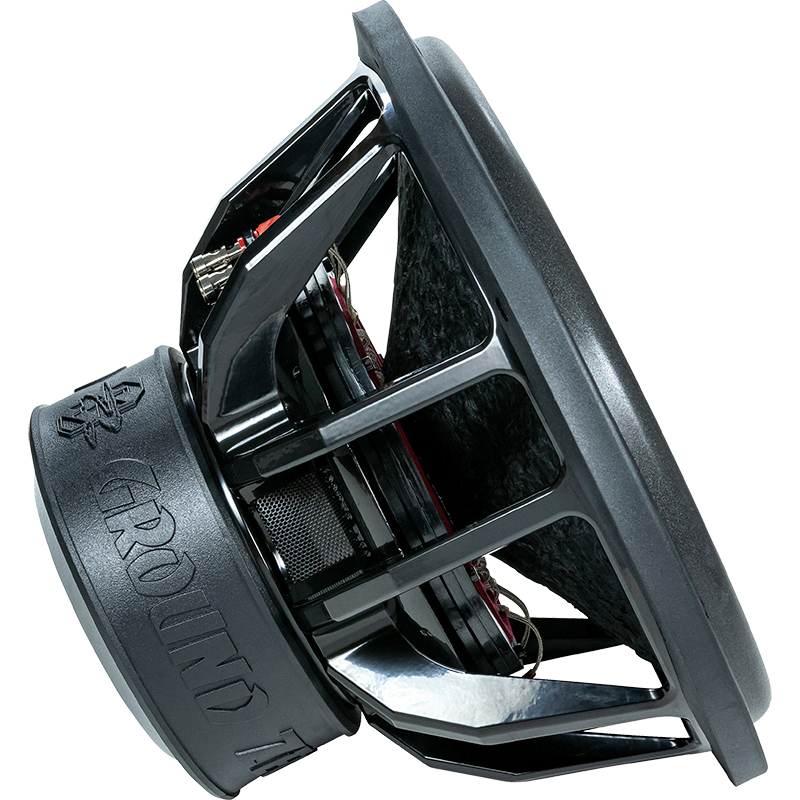

GZHW 38-D2
38 cm / 15″ High-Performance Subwoofer
3500 Watts SPL
15″ High-Performance Subwoofer with alumiunum cast basket and reinforced paper cone
- 15″ subwoofer
- Klippel® optimized
- Reinforced paper cone
- Long stroke compound surround
- Solid aluminum cast basket
- 75 mm / 3″ copper voice coil
- 2-layer Polycot spider
- Carbon dust cap
| Model | High-Performance Subwoofer |
|---|---|
| Diameter | 38 cm / 15″ |
| Power handling (RMS/SPL) | 1500 / 3500 Watts |
| Impedance | 2x 2 Ohm |
| Efficiency | 87 dB |
| Power recommendation | 1500 – 3500 Watt |
| Voice coil | 75 mm / 3″ copper |
| Cone | Reinforced paper |
| Max. Excursion (Xmax) | 45 mm / 1.77″ |
| Mounting Ø | 360 mm / 14.17″ |
| Mounting depth | 231 mm / 9.09″ |
| Resonance frequency (Fs) | 36.3 Hz |
| Overall quality (Qts) | 0.52 |
| Equiv. air volume (Vas) | 32.8 L / 1.16 cu.ft. |
