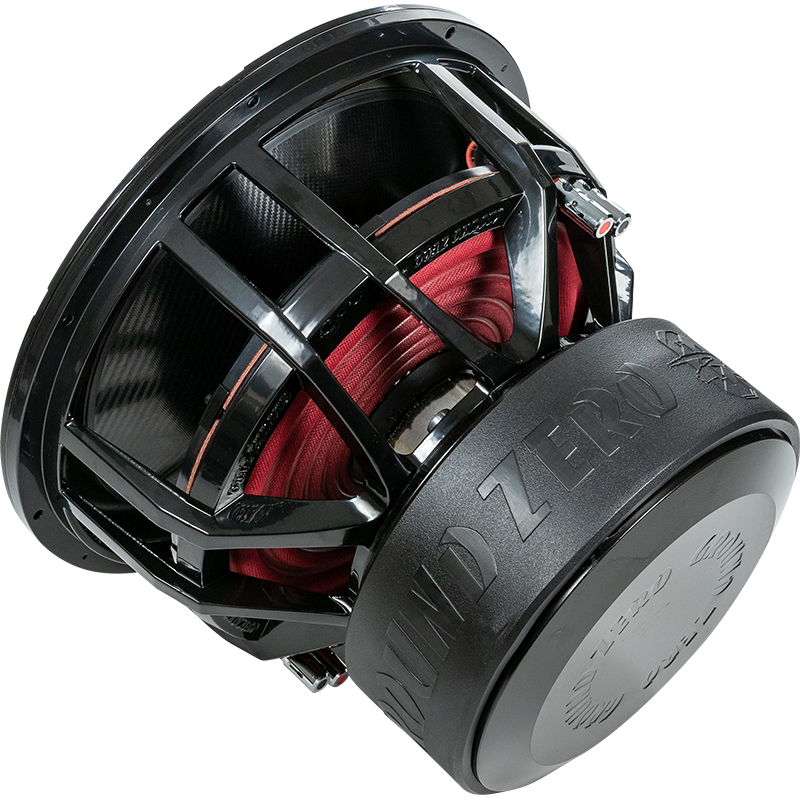

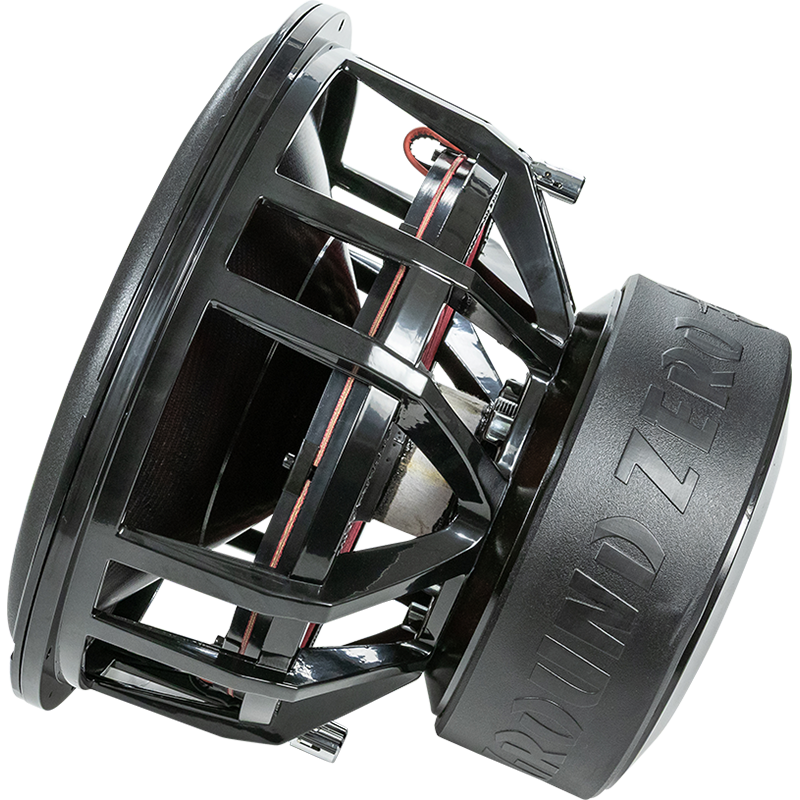

GZNW 38C
38 cm / 15″ high performance subwoofer
6000 Watts
15″ high performance subwoofer with airflow optimized aluminum cast basket
- 15″ high performance subwoofer
- Klippel® optimized
- Carbon-fiber cone
- Airflow optimized aluminum cast basket
- 75 mm / 3″, 8-layer flat wire CCA voice coil
- 7-layer 12” spider
- Carbon-fiber dust cap
- Massive push terminals
| Type | High-Performance SPL Subwoofer |
|---|---|
| Diameter | 38 cm / 15″ |
| Power handling (RMS/SPL) | 6000 / 25000* Watts |
| Impedance | 2x 1 Ohm |
| Efficiency | 86 dB |
| Power recommendation | 3000 – 6000 Watts |
| Voice coil | 75 mm / 3″ CCA |
| Cone | Carbon-fiber |
| Max. excursion (Xmax) | 80 mm / 3.15″ |
| Mounting Ø | 360 mm / 14.17″ |
| Mounting depth | 290 mm / 11.42″ |
| Resonance frequency (Fs) | 33 Hz |
| Damping ratio (Qts) | 0.38 |
| Equiv. air volume (Vas) | 23 L / 0.81 cu.ft. |
