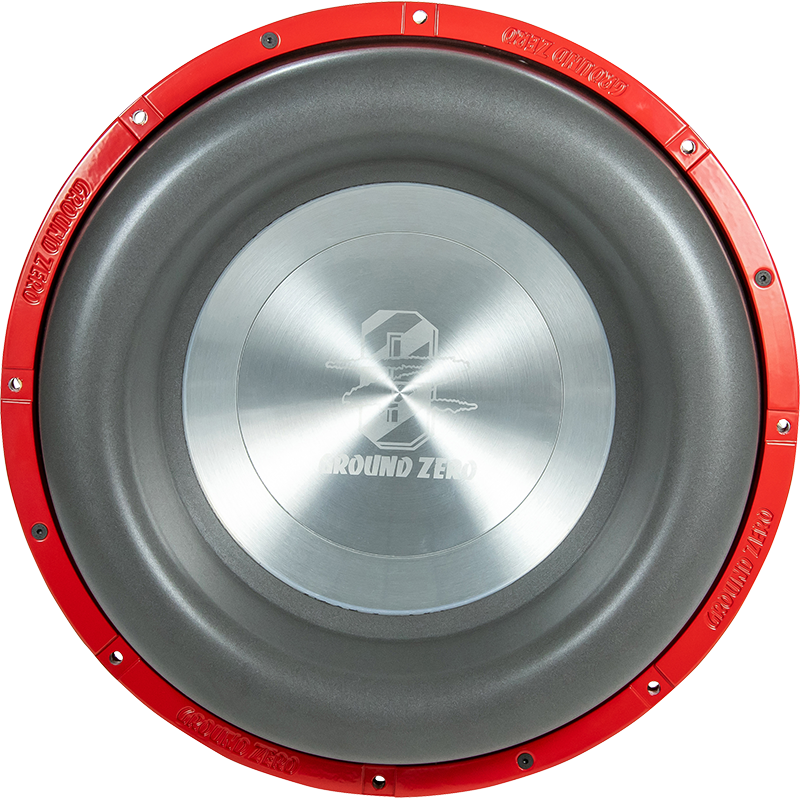

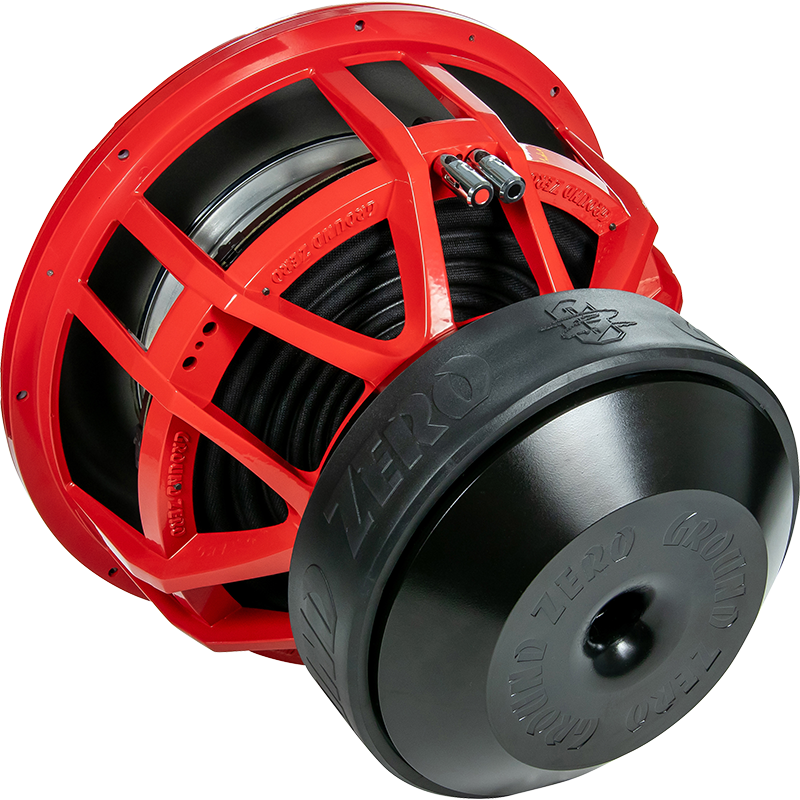

GZNW 38XMAX-II
38 cm / 15″ high performance long excursion subwoofer
4000 Watts RMS
15″ high performance long excursion subwoofer with airflow optimized aluminum cast basket and Xmax surround
- 15″ long excursion subwoofer
- Klippel® optimized
- Aluminum Cone & dust cap
- 3-layer long stroke surround
- Airflow optimized aluminum cast basket
- 75 mm / 3″ aluminum round wire voice coil
- 7-layer 12” spider
- Aluminum dust cap
- Massive push terminals
| Type | Long excursion Subwoofer |
|---|---|
| Diameter | 38 cm / 15″ |
| Power handling (RMS) | 4000 Watts |
| Impedance | 2x 1 Ohm |
| Efficiency | 84 dB |
| Power recommendation | 2000 – 6000 Watts |
| Voice coil | 75 mm / 3″ aluminum |
| Cone | Aluminum |
| Max. excursion (Xmax) | 62 mm / 2.36″ |
| Mounting Ø | 360 mm / 14.17″ |
| Mounting depth | 300 mm / 11.81″ |
| Resonance frequency (Fs) | 31 Hz |
| Damping ratio (Qts) | 0.51 |
| Equiv. air volume (Vas) | 26.2 L / 0.93 cu.ft. |
