GZRA 65.4-MICRO
Plug and play micro 4-channel ISO-amplifier
High-efficient class D 4-channel amplifier
ultra-compact 4-channel ISO-amplifier for plug and play OEM installations
- Micro 4-channel ISO-amplifier
- SMD components
- Class D technology
- Fixed high-pass filter for easy setup
- Easy integration of additional mono amplifiers
- Stable power supply
- Compact heatsink with engraved Ground Zero lettering
- High-level input with auto-on function

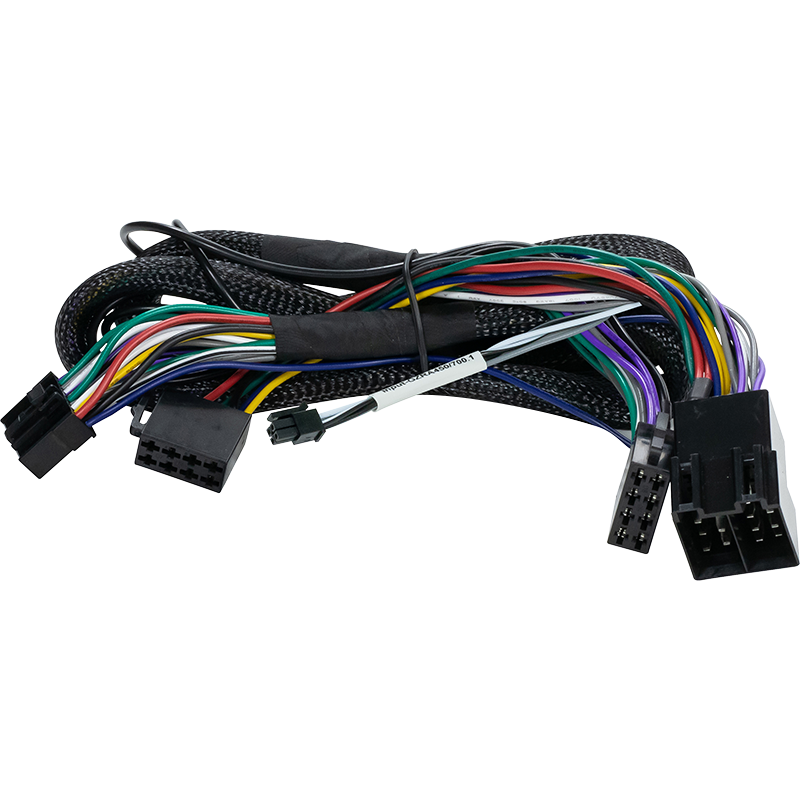

- Incl. ISO harness
| Type | Class D amplifier |
|---|---|
| Channels | 4 |
| Output Power (@ 4Ω) | 4x 65 Watts RMS |
| Output Power (@ 2Ω) | 4x 75 Watts RMS |
| Output Power (@ 4Ω) bridged | 2x 150 Watts RMS |
| max. Output Power | 340 Watts |
| Frequency Response | 10 Hz – 22 kHz |
| HPF / LPF / BPF | ● / ● / ● |
| Bass Boost / Phase switch | ○ / ○ |
| High level input / Auto-on | ● / ● |
| Remote Control | ○ |
| BIAS Setting | ○ |
| Linkmode | ○ |
| Dimensions (w x l x h) heat sink | 82 x 185 x 40 mm / 3.23″ x 7.28″ x 1.57″ |
