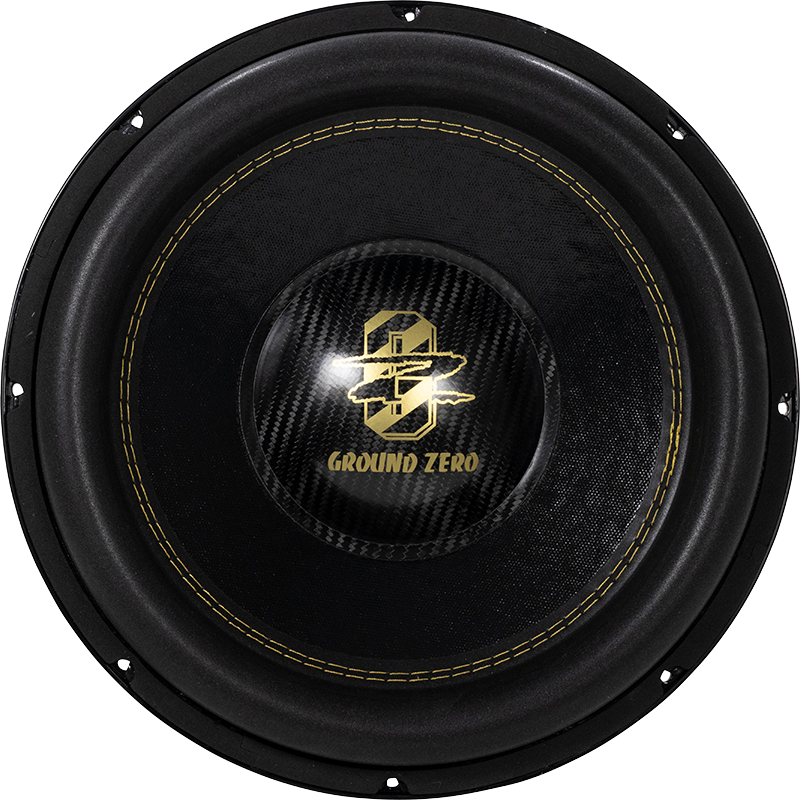

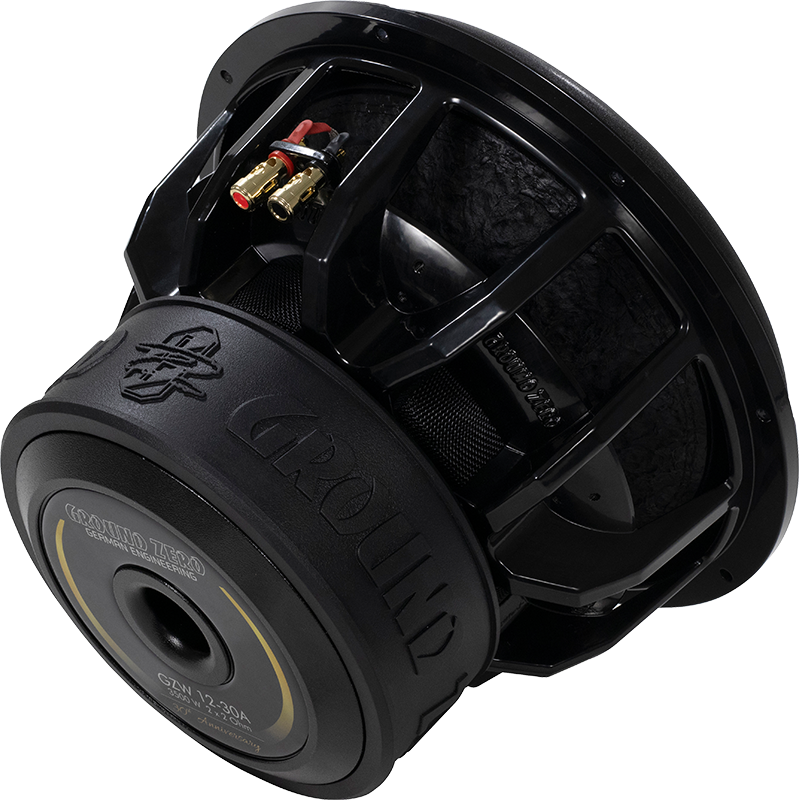

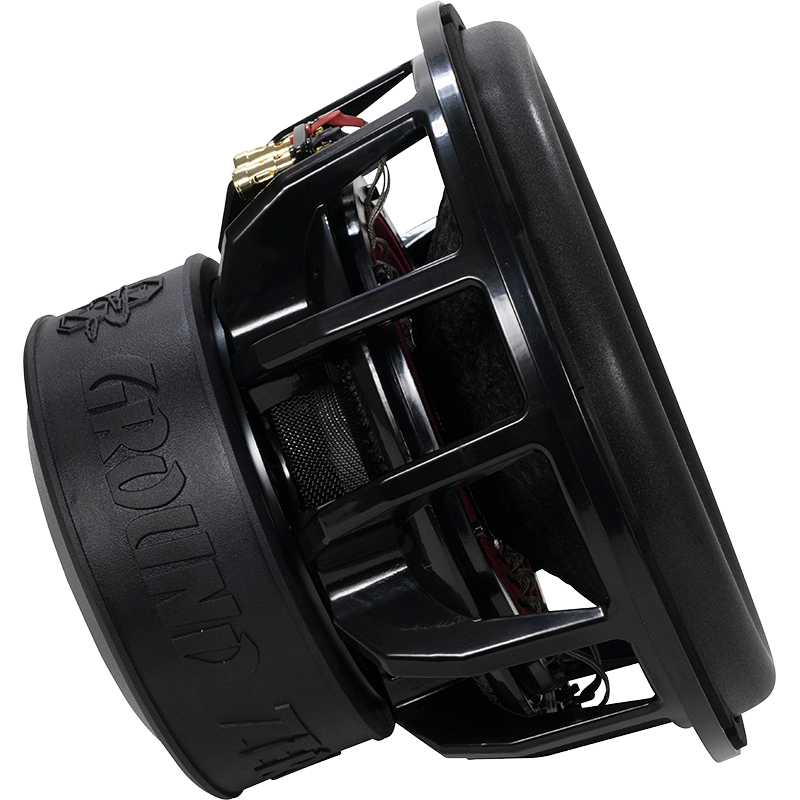

Magnifier
GZW 12-30A
30 cm / 12″ high quality SPL subwoofer
3500 Watts SPL
12″ high-power SPL subwoofer with alumiunum cast basket and reinforced paper cone
- 12″ high quality SPL subwoofer
- Klippel® optimized
- Reinforced paper cone
- Long stroke U-surround
- Solid aluminum cast basket
- 75 mm / 3″ copper voice coil
- 2-layer Polycot spider
- Carbon dustcap
| Model | High-Quality SPL subwoofer |
|---|---|
| Diameter | 30 cm / 12″ |
| Power handling (RMS/SPL) | 1500 / 3500 Watts |
| Impedance | 2x 2 Ohm |
| Efficiency | 85 dB |
| Power recommendation | 1000 – 3500 Watts |
| Voice coil | 75 mm / 3″ Copper |
| Cone | Reinforced paper |
| Max. Excursion (Xmax) | 45 mm / 1.77″ |
| Mounting Ø | 284 mm / 11.18″ |
| Mounting depth | 198 mm / 7.80″ |
| Resonance frequency (Fs) | 26.5 Hz |
| Damping ratio (Qts) | 0.52 |
| Equiv. air volume (Vas) | 30,6 L / 1.08 cu.ft. |
