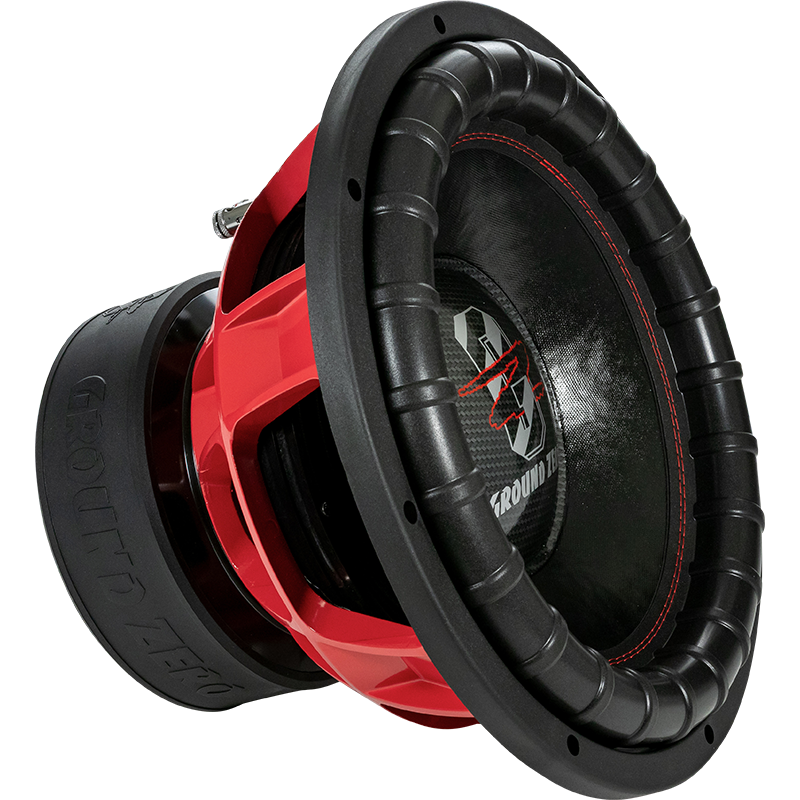

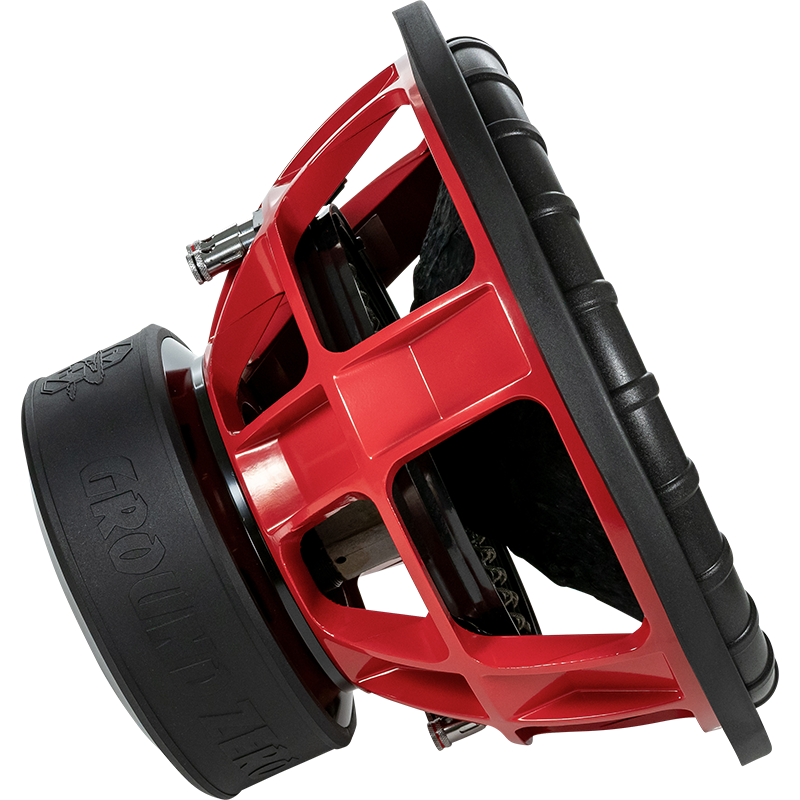

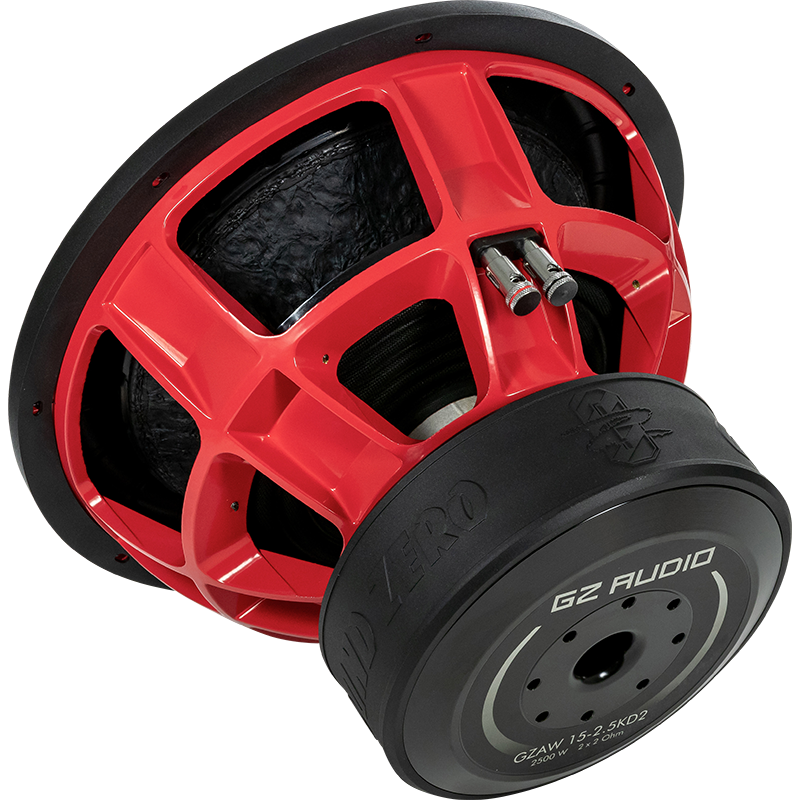

GZAW 15-2.5KD2
38 cm / 15″ high power subwoofer
– Available in selected countries –
2500 Watts RMS
15″ high power subwoofer with fiber reinforced non pressed paper cone
- 15″ subwoofer
- Klippel® optimized
- Fiber reinforced paper cone
- High-roll U-surround
- Solid aluminum cast basket
- 75 mm / 3″ voice coil
- Push terminal
| Model | High-power Subwoofer |
|---|---|
| Diameter | 38 cm / 15″ |
| Power handling (RMS) | 2500 Watts |
| Impedance | 2x 2 Ohm |
| Efficiency | 88 dB |
| Power recommendation | 1500 – 3000 Watts |
| Voice coil | 75 mm / 3″ |
| Cone | Reinforced paper |
| Max. Excursion (Xmax) | 30 mm / 1.18″ |
| Mounting Ø | 357 mm / 14.06″ |
| Mounting depth | 246 mm / 9.69″ |
| Resonance frequency (Fs) | 28 Hz |
| Overall quality (Qts) | 0.30 |
| Equiv. air volume (Vas) | 59.8 L / 2.11 cu.ft. |
