GZCA 20000.M1
1-channel competition SPL amplifier
– Not available in the EU –
High-power mono class D amplifier
1-channel 1-ohm stable SPL high power amplifier with class D circuit, integrated active crossover and bass boost
- SPL high power amplifier
- Class D technology
- Variable active crossover and bass boost
- Stabilized high voltage power supply

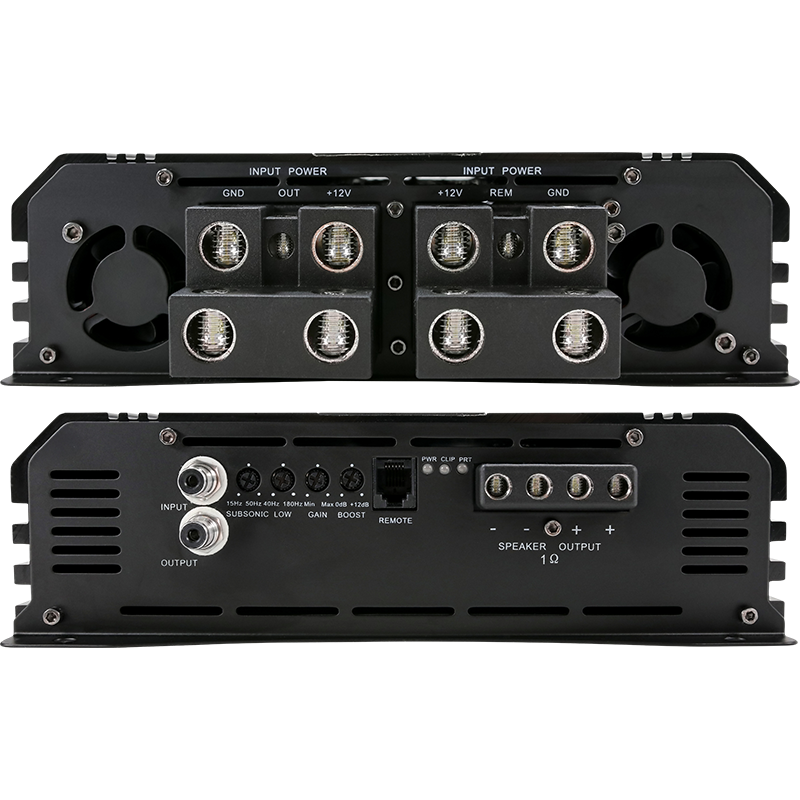

- Large terminals
- Solid heatsink with Ground Zero lettering
- Particularly qualified for SPL and SQL applications
| Model | Competition SPL amplifier |
|---|---|
| Channels | 1 |
| Output Power (@ 4Ω) | 7300 Watts |
| Output Power (@ 2Ω) | 13000 Watts |
| Output Power (@ 1Ω) | 20000 Watts / 22000 Watts max |
| Frequency Response | 15 Hz – 180 Hz |
| HPF / LPF / BPF | ● / ● / ● |
| Bass Boost / Phase switch | ● / ○ |
| High level input / Auto-on | ○ / ○ |
| Remote | ● |
| BIAS Setting | ○ |
| Linkmode | ○ |
| Dimensions (W x L x H) | 230 x 790 x 67 mm / 9.06 x 31.10 x 2.64″ |
