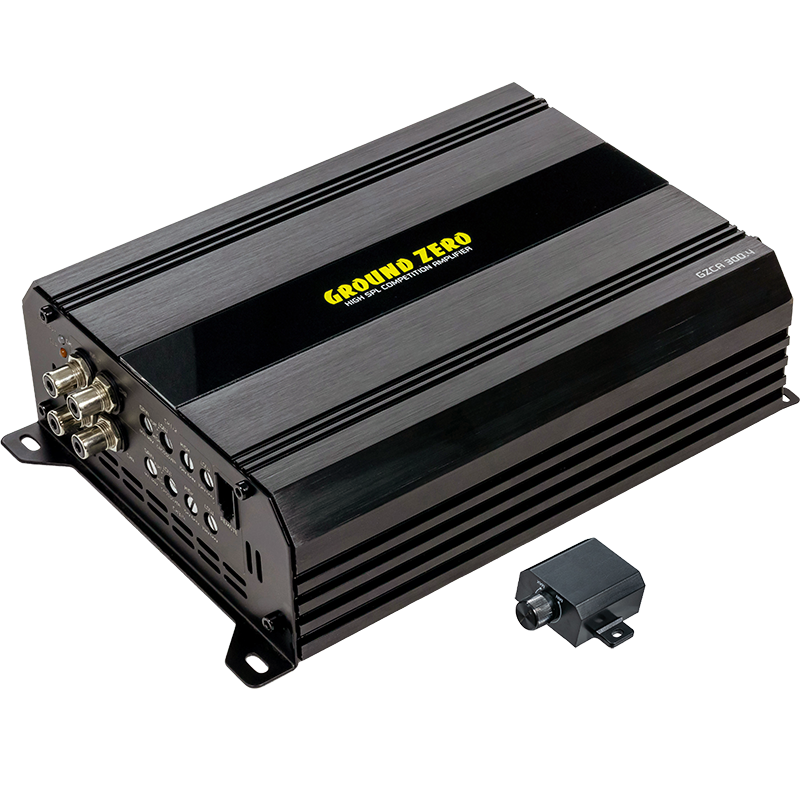

GZCA 300.4
4-channel competition SPL amplifier
Compact high-power amplifier
4-channel 1-ohm stable full range SPL high power amplifier with class D circuit and integrated active crossover
- SPL high power amplifier
- Class D technology
- Variable active crossover
- full range frequency responde
- Stable high voltage power supply

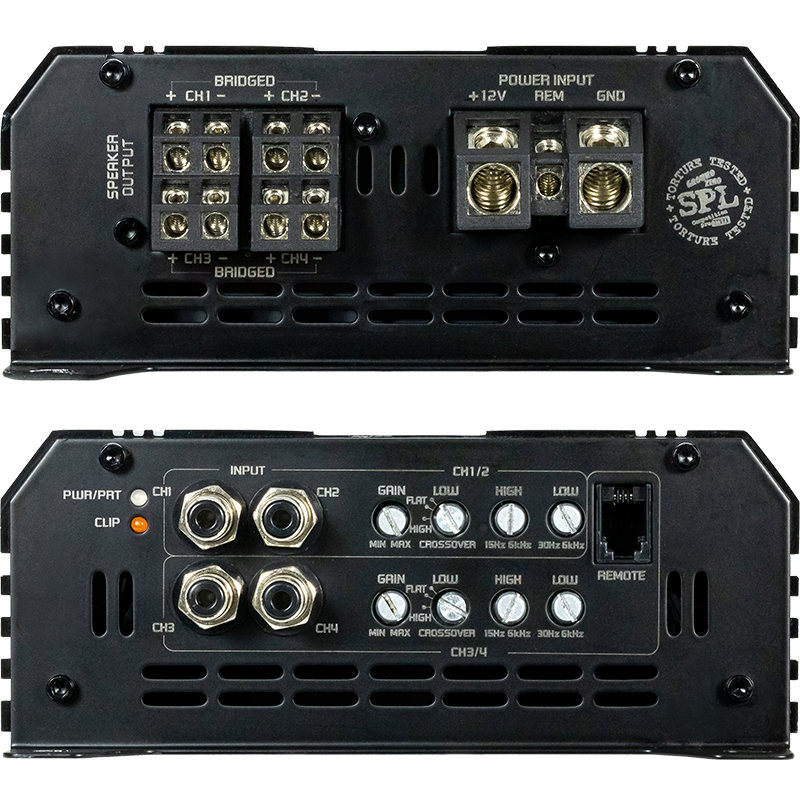

- Large terminals
- Solid heatsink with Ground Zero lettering
- Compatible with many e-cars (see the manual)
- Particularly qualified for SPL and SQL applications
| Type | Competition SPL amplifier |
|---|---|
| Kanäle | 4 |
| Output Power (@ 4Ω) | 125 Watts RMS |
| Output Power (@ 2Ω) | 230 Watts RMS |
| Output Power (@ 1Ω) | 360 Watts RMS |
| max. Output Power (CEA-2006A / 10%THD+N) | 1800 Watts |
| Output power (@ 2Ω) bridged | 2x 715 Watts RMS |
| Frequency Response | 10 Hz – 20 kHz |
| HPF / LPF / BPF | ● / ● / ○ |
| Bass Boost / Phase Shift | ○ / ○ |
| High-Level Input / Auto-on | ○ / ○ |
| Remote Control | ● |
| BIAS Setting | ○ |
| Linkmode | ○ |
| Dimensions (w x h x l) | 220 x 150 x 64 mm / 8.66″ x 5.91″ x 2.52″ |
