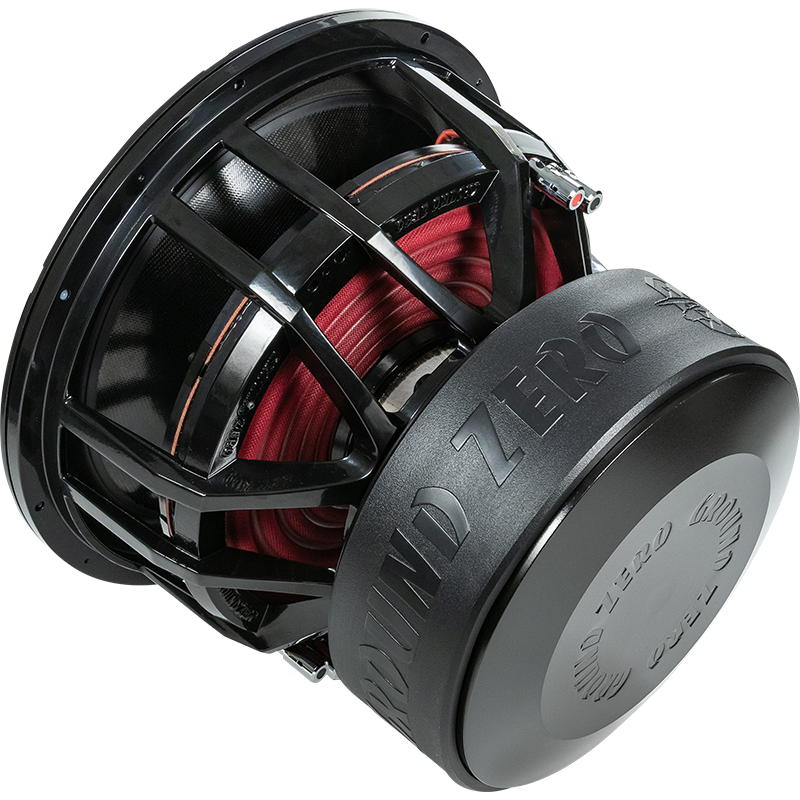

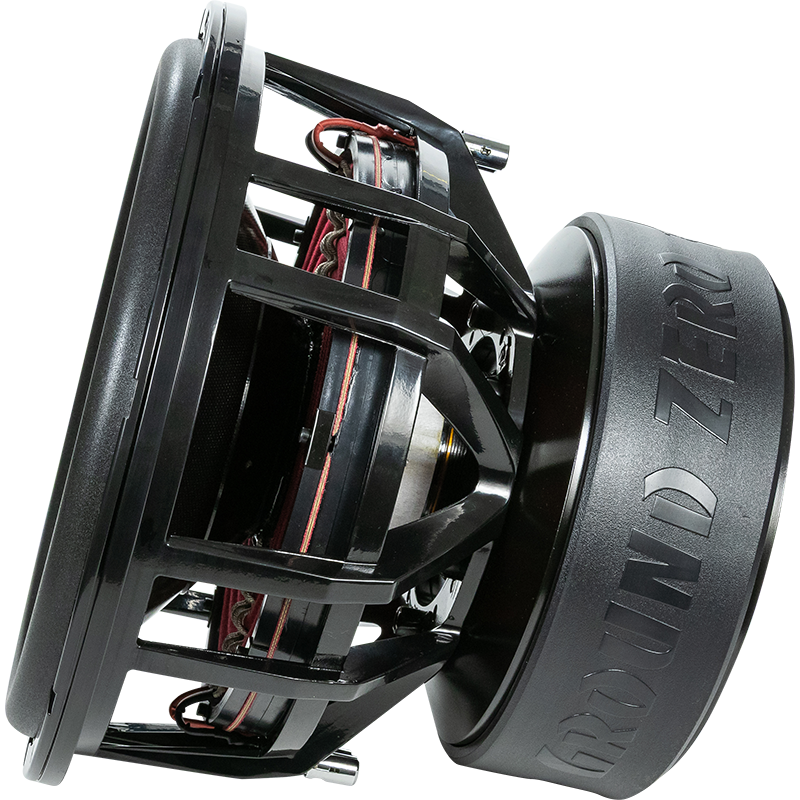

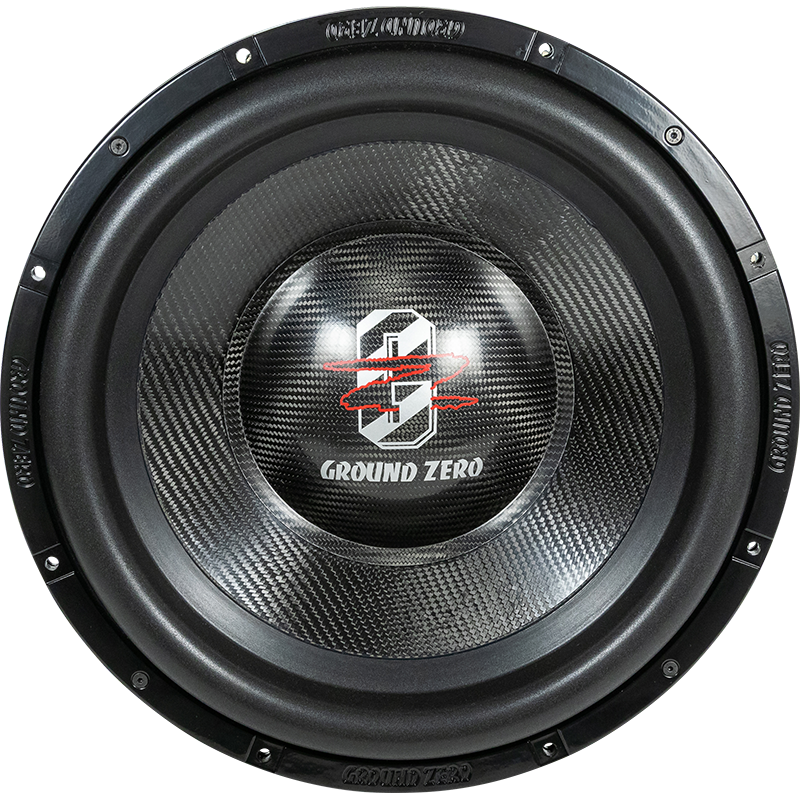

GZPW 15C
38 cm / 15″ high power subwoofer
6500 Watts RMS
15″ high power subwoofer with airflow optimized aluminum cast basket
- 15″ high power subwoofer
- Klippel® optimized
- Carbon-fiber cone
- Airflow optimized aluminum cast basket
- 100 mm / 4″, 4-layer flat wire CCA voice coil
- 7-layer 12” spider
- Carbon fiber dust cap
| Type | High-Power Subwoofer |
|---|---|
| Diameter | 38 cm / 15″ |
| Power handling (RMS) | 6500 Watts |
| Impedance | 2x 1 Ohm |
| Efficiency | 86 dB |
| Power recommendation | 4500 – 6500 Watts |
| Voice coil | 100 mm / 4″ CCA |
| Cone | Carbon-fiber |
| Max. excursion (Xmax) | 60 mm / 2.36″ |
| Mounting Ø | 360 mm / 14.17″ |
| Mounting depth | 300 mm / 11.8″ |
| Resonance frequency (Fs) | 31 Hz |
| Damping ratio (Qts) | 0.51 |
| Equiv. air volume (Vas) | 28.18 L / 0.995 cu.ft. |
