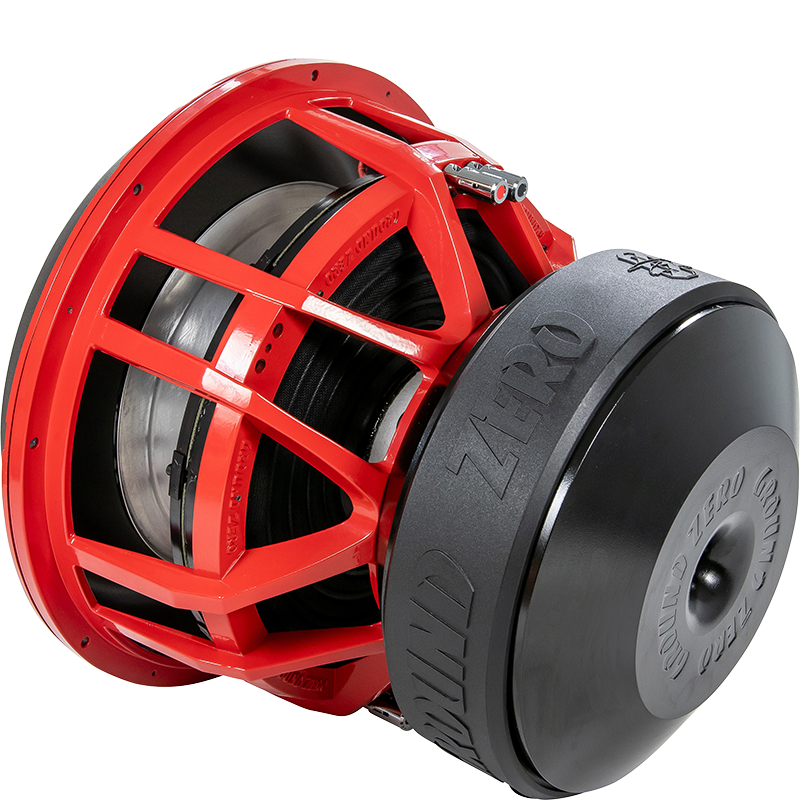

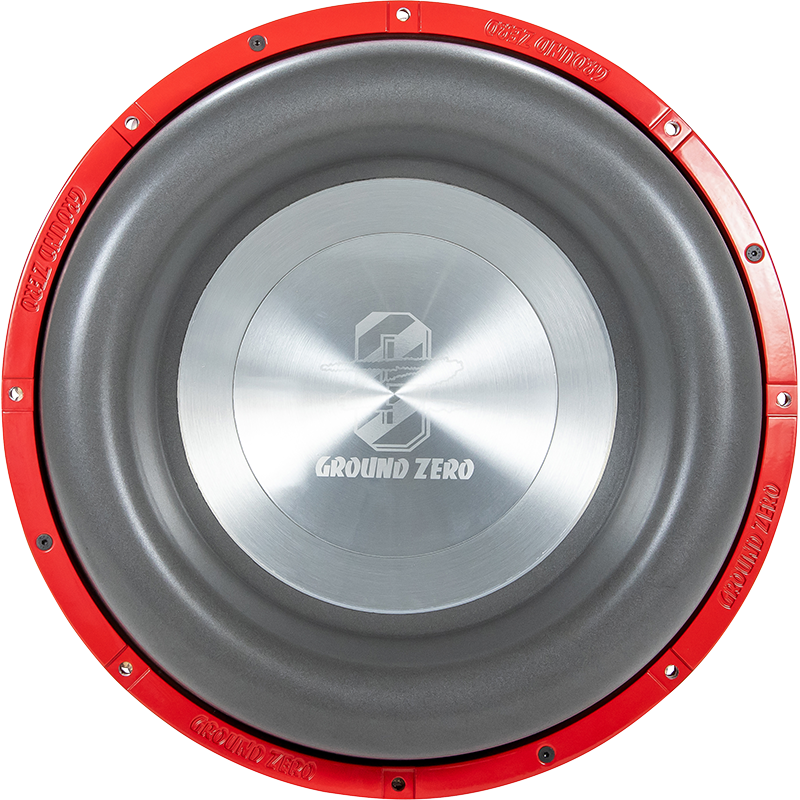

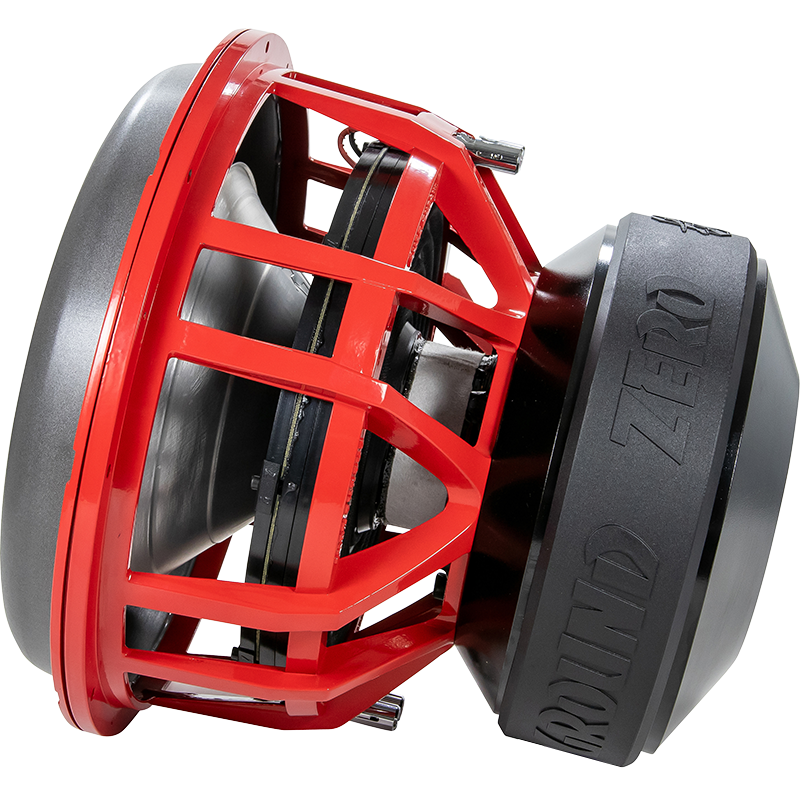

GZPW 15XMAX-II
38 cm High-Power Langhub-Subwoofer
6000 Watts RMS
15″ high power long excursion subwoofer with airflow optimized aluminum cast basket and Xmax surround
- 15″ high long excursion subwoofer
- Klippel® optimized
- Aluminum cone
- 3-layer long stroke surround
- Airflow optimized aluminum cast basket
- 4” 4-layer flatwire CCA voice coil
- 7-layer 12” spider
- Aluminum dust cap
- Massive push terminals
| Type | High power long excursion subwoofer |
|---|---|
| Diameter | 38 cm / 15″ |
| Power handling (RMS) | 6000 Watts |
| Impedance | 2x 1 Ohm |
| Efficiency | 85 dB |
| Power recommendation | 4000 – 8000 Watts |
| Voice coil | 100 mm / 4″ CCA |
| Cone | Aluminum |
| Max. excursion (Xmax) | 80 mm / 3.15″ |
| Mounting Ø | 360 mm / 14.17″ |
| Mounting depth | 310 mm / 12.20″ |
| Resonance frequency (Fs) | 30 Hz |
| Damping ratio (Qts) | 0.42 |
| Equiv. air volume (Vas) | 27 L / 0.95 cu.ft. |
