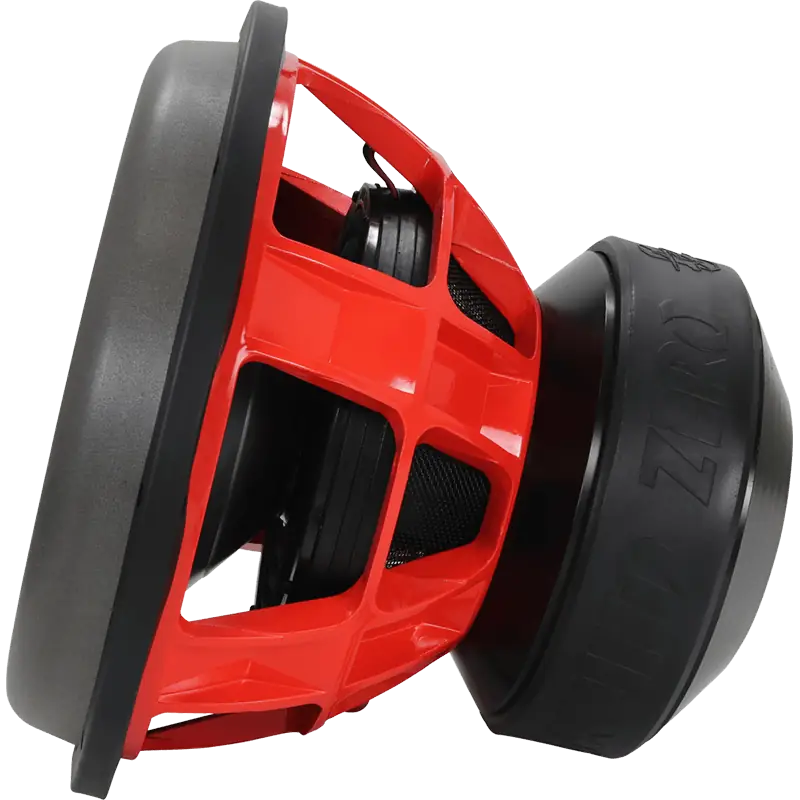

GZNW 15Xmax
38 cm / 15″ high power long stroke subwoofer
4000 Watts RMS
15″ high power subwoofer with aluminum cast basket and Xmax surround
- 15″ high power long stroke
- Klippel® optimized
- Aluminum cone
- Long stroke compound surround
- Solid aluminum cast basket
- 75 mm/ 3″ CCA round wire voice coil
- 4-layer Nomex spider
- Aluminum dust cap
| Model | High-Power Low-Bass-Subwoofer |
|---|---|
| Diameter | 38 cm / 15″ |
| Power handling (RMS) | 4000 Watts |
| Impedance | 2x 1 Ohms |
| Efficiency | 87 dB |
| Power recommendation | 3000 – 5000 Watts |
| Voice coil | 75 mm / 3″ CCA |
| Cone | Aluminum |
| Max. Excursion (Xmax) | 80 mm |
| Mounting depth | 285 mm |
| Resonance frequency (Fs) | 29.5 Hz |
| Damping ratio (Qts) | 0.33 |
| Equiv. air volume (Vas) | 35.7 L |
