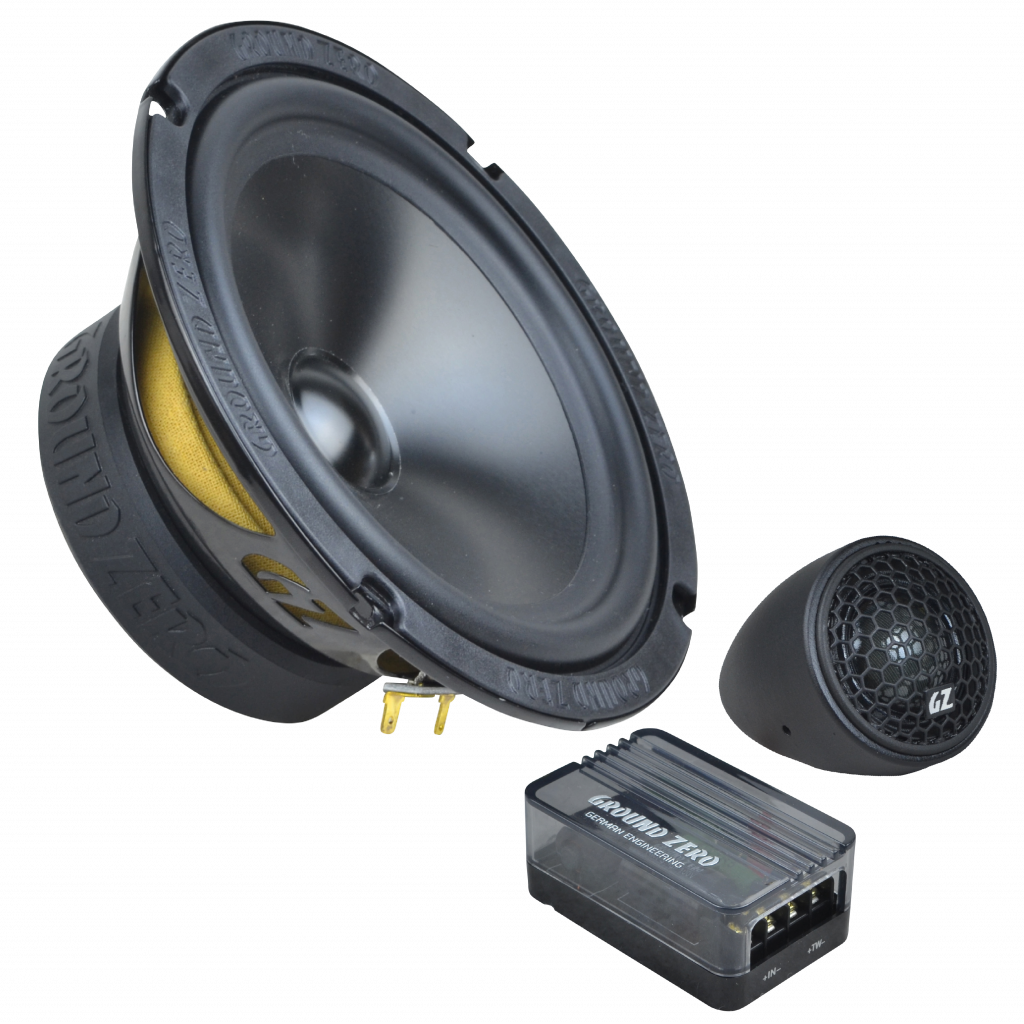

GZRC 165.2SQ-IVX
165 mm / 6.5″ 2-way SQ component speaker system
190 Watts max
6.5″ 2-way SQ component speaker system with aluminum cone and 3-ohms impedance

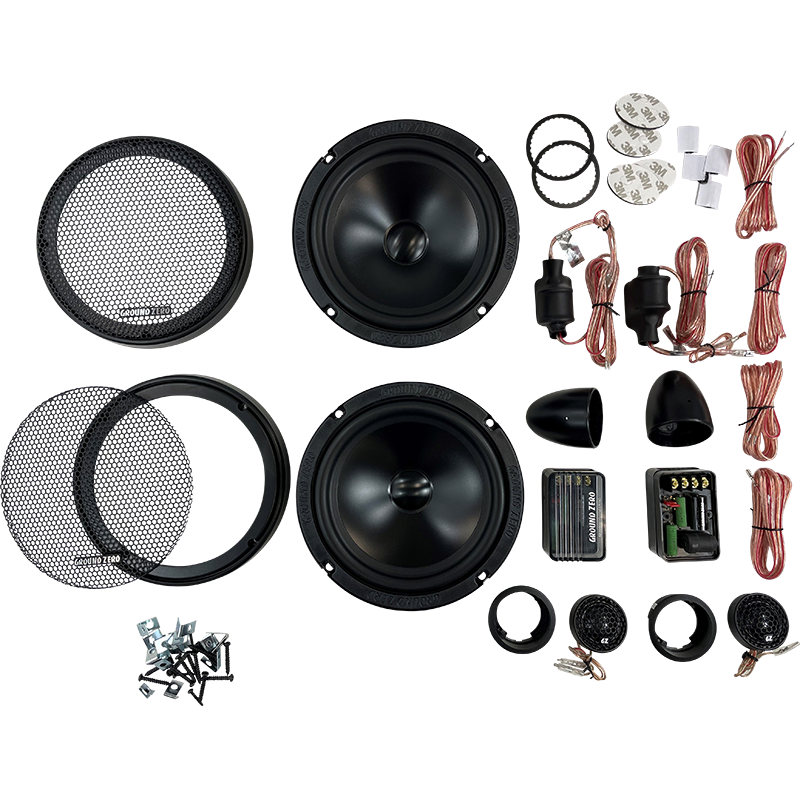

- 2-way SQ component speaker system
- Black anodized aluminum cone
- Rubber surround
- Nomex spider
- Resonance free steel basket
- High efficient 3 ohms version
- GZRT 25SQ
- Ferrite motor
- Separated high pass and low pass filter
- Incl. protection grill
| Type | 2-way SQ component speakers |
|---|---|
| Diameter | 165 mm / 6.5″ |
| Power handling (RMS/max.) | 120 / 190 Watts |
| Impedance | 3 Ohms |
| Efficiency | 90 dB |
| Frequency response | 35 Hz – 25 kHz |
| Tweeter | GZRT 25SQ |
| Midwoofer | GZRK 165SQ |
| Mounting Ø | 142.5 mm / 5.61″ |
| Mounting depth | 68 mm / 2.68″ |
| Crossover | 12/12 dB/Okt. |
| Crossover frequency | 4600 Hz |
