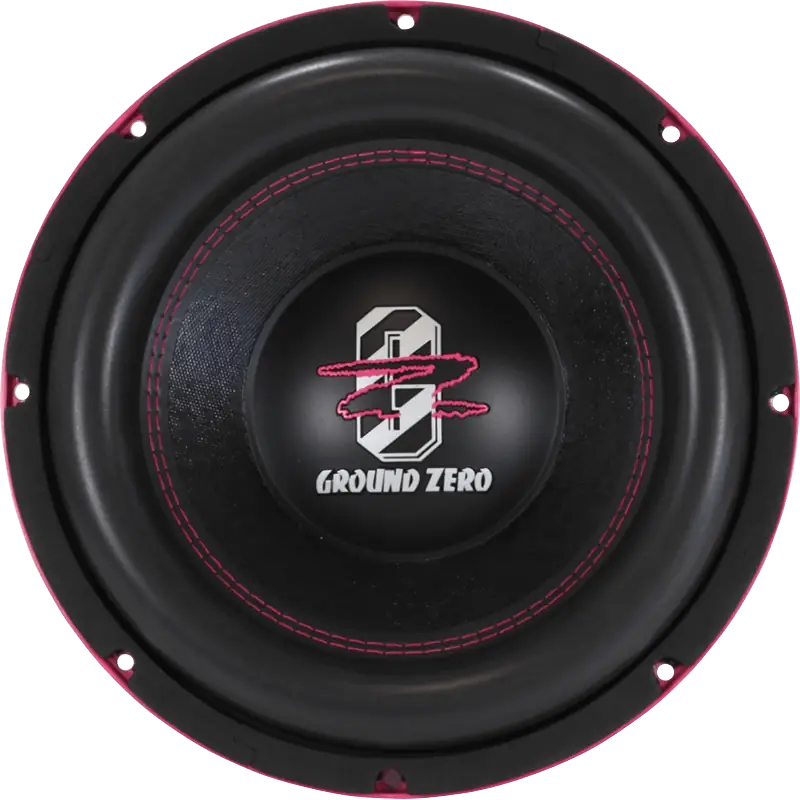

GZHW 30SPL Pink Edition

30 cm / 12″ high quality SPL subwoofer

SKU: 51524022 Categories: , ,

Description

30 cm / 12″ high quality SPL subwoofer

3000 Watts SPL

12″ high quality SPL subwoofer with alumiunum cast basket and reinforced paper cone

  • 12″ high quality SPL subwoofer
  • Klippel® optimized
  • Reinforced paper cone
  • Long stroke compound surround
  • Solid aluminum cast basket
  • 75 mm / 3″ copper voice coil
  • 2-layer Polycot spider
  • IMPP dust cap with 3D structure logo

Additional information

Model

High-Quality SPL Subwoofer

Diameter

30 cm

Belastbarkeit (RMS/SPL)

1500 / 3000 Watt

Impedance

2x 1 Ohm

Efficiency

85 dB

Power Recommendation

1000 – 3000 Watt

Voice Coil

75 mm Kupfer

Membran Layout

Verstärktes Papier

Max. Excursion (Xmax)

45 mm

Mounting Ø

284 mm

Mounting Depth

198 mm

Resonance Frequency (Fs)

35.4 Hz

Overall Qaulity (Qts)

0.44

Equiv. Air Volume (Vas)

15.8 L
